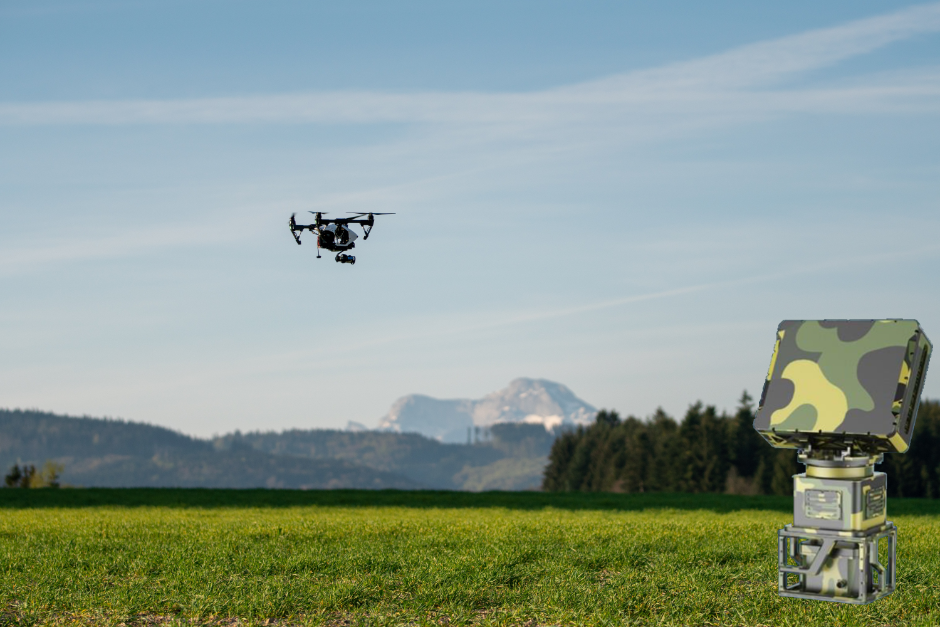

SD-3 Air Surveillance Radar

SD-3 is based on AESA (Active Electronically Scanned Aray) and Doppler pulse technology, which makes it suitable for continuously detecting and tracking small targets at low speed and low altitude. It can track up to 20 moving targets. All-solid-state design enables it to work reliably all-weather in any complex environment. Quick deployment is easily realized due to the lightweight design.

Specifications

General
Radar type:  AESA, Doppler pulse
Frequency Band:  Ku (16.0GHz – 16.4GHz)
Scan type:  e-scan
Transmitter power (peak):   ≤130W

Target Detection
Maximum detection ranges:  ≥3km (equal to RCS=0.01m², tested with 1.5kg UAV)
Maximum targets per scan:   20
Minimum detection velocity:  3m/s

Covrage
Instrumented range:  ≥3km
Minimum detection range:  ≤200m
Azimuth coverage:  360°
Elevation Coverage：  30°
Rotation/Scan Speed: 60°/s

Others
Input power:  24VDC
Power consumption:  ≤150W
Interface:  Ethernet, 1000Base-T
Weight:  ≤35kg
Operational Temperature:   -20°C – +55°C
IP rating:   IP65
